Automatic Vegetable Paste Colloid Milling Machine can be used for milling vegetables to paste. This type of machine is commonly used in the food industry for processing a wide range of products such as sauces, dressings, dips, spreads, and more. The vegetable paste milling machine works by utilizing a high-speed rotor that spins at a very high rate of speed. As the vegetable paste is fed into the machine, it is forced through a series of small holes or channels, where it is broken down and emulsified into a smooth, uniform consistency. This process is known as colloid milling. Paste Colloid Mill machines are an essential piece of equipment for many industries, as they provide an efficient and effective way to process and homogenize a wide variety of products.
Working principle of Vegetable Paste Grinding Machine
With its flexible and fixed mills with different geometric shapes rotating at high speed making the relative motion, this machine crushes materials by cutting, pulverizing, the pulverizing fineness can be adjusted by changing the rip between the upper and down mills. It can well reach the required effect of super-fine pulverizing fineness can be adjusted by changing the rip between the upper and down mills. It can well reach the required effect of supper-fine pulverizing at once. Featured with compact conformation, steady run, low noise, corrosion resistant, easy clean, convenient maintain etc, it is the most deal equipment for wet pulverizing in our nation .ced standard.

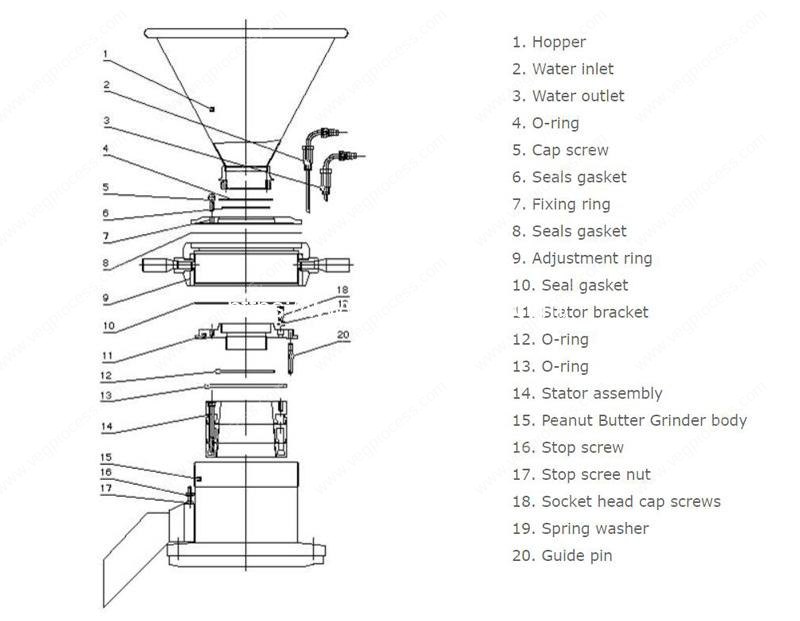

Internal Structure of Vegetable Paste Grinder
Advantage Feature of Vegetable Paste Grinding Machine
- It has such excellence as follows: well-designed, simple operation, low noise, easy servicing,
small in size, corrosion resisting,wide-range use etc. - The main parts of this machine are made of high grade stainless steel which is nonpoisonous land corrosion-proof.
- All critical parts of this machine are processed with advanced technique.The annular clearance may be microadjusted by means of adjusting mechanism and an index dial is prepared.
- This mechanism can be easily controlled and the quality of products will be ensured satisfactorily.
- According to the different use, the different materials and hardness of grinders can be easily assembled or disassembled and cleared.
- This machine runs very smoothly and steadily.
- We have series assortment of goods to choose from including mills with cooling or heating system at user’s desire.
Specification of Vegetable Paste Grinding Machine
| Model | RM-PBG50 | RM-PBG80 | RM-PBG110 | RM-PBG130 | RM-PBG180 | RM-PBG240 | RM-PBG300 |
| Fineness(mu) | 50-100 | 50-100 | 100-200 | 100-200 | 100-200 | 100-200 | 60-200 |
| Capacity | 10-15kg/h | 70-100kg/h | 300kg/h | 400-600kg/h | 0.8-1t/h | 1.5-2t/h | 3-4t/h |
| Power Supply | 1.1kw(380V)/ | 4kw(380V) | 7.5kw,380v | 15kw,380v | 18.5kw,380v | 45kw,380v | 75kw,380v |
| Weight(kg) | 50 | 150 | 175 | 285 | 340 | 1300 | 1600 |
| Dimension(mm) | 530*260*580 | 640*410*900 | 700*430*980 | 830*440*1100 | 830*490*1100 | 1320*500*1280 | 1440*630*1420 |
Working Video of Automatic Vegetable Paste Colloid Milling Machine
Company Profile
Romiter Machinery Co., Ltd. is a market-leading designer and a manufacturer of Vegetable Processing Machine with 20 years’ experience. Romiter Machinery wins a wide reputation for products with high efficiency, excellent reliability, easy maintenance and long lifespan. Romiter has an excellent technical support team, including highly experienced machinists and service technicians.
Now, Romiter Group provides a complete Vegetable Processing Solution, which includes but is not limited to vegetable washing machine, vegetable peeling machine, vegetable cutting machine, vegetable blanching machine, vegetable sorting machine, vegetable paste machine, vegetable dryer, vegetable juicer machine, low temperature vacuum frying machine, vegetable frying machine, vegetable frozen machine and vegetable packing machine.
Romiter Group can provide customized products for customers. Welcome to contact us for more information.
